Power Dynamics - Wireless Microphone Set - 4 x 50-Channel UHF
4 x Bodypack Microphones

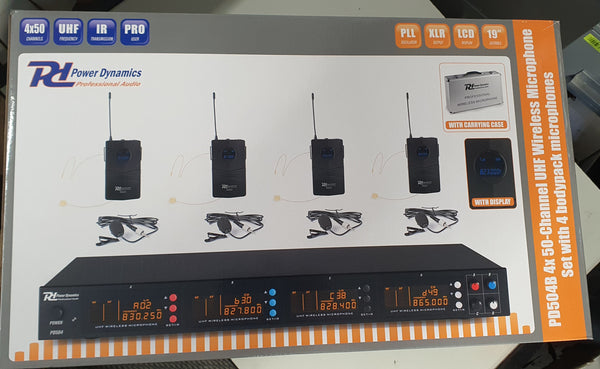

PD504B 4x 50-Channel UHF Wireless Microphone Set with 4 bodypack microphones
This impressive sounding Power Dynamics UHF 4 microphone wireless system allows you to operate 4 microphones at the same time. The reciever is colour coded allowing for quick identification making the job of your sound man to make adjustments while the mics are being used on stage super easy. Excellent sound quality for vocal and PA applications.
- 4x Bodypack with headset and tie-clip microphone and mute function
- 4x 50 Selectable non-interfered UHF channels
- IR data transmission for channel selection
- Microphone connection using 3,5mm screwable jack
- 4x balanced XLR outputs
- CPU controlled
- PLL oscillator
- Transmitters with display showing the frequency and battery low indication
- Equipped with Dynamic LCD
SPECIFICATIONS
| Operating frequency |
|
|
| RF output | <10mW | |
| Frequency response | 60Hz - 18kHz | |
| Frequency stability | <15ppm | |
| THD | <1% | |
| Signal to noise ratio | >97dB | |
| Battery | 2x AA (bodypack) | |
| Power supply | 230VAC / 50Hz | |
| Receiver:Dimensions | 235 x 420 x 44mm | |
| Body pack: Dimensions | 75 x 60 x 23mm | |
| Receiver:Weight | 1700gr | |
| Body pack: Weight | 200gr |
