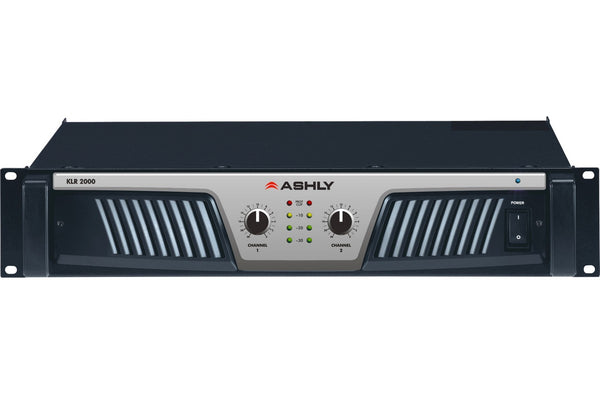

Ashly's broad range of power amplification for the professional audio industry includes a workhorse family of two-channel power amplifiers the KLR Series.
Our KLR Series are high-efficiency, high-power 2-channel amplifiers that are the ideal choice for high-output speaker systems, line arrays, dual 18” subwoofers and much more. If you think you need to use an expensive, European amplifier to get a clean, stable, quiet amplifier—think again.
Exceptionally lightweight for their class, all KLRs are designed in standard 2RU enclosures.
KLRs are quiet with signal-to-noise ratio ratings from >108 dB to >110 dB across all models. They're also versatile, each with a 3-position gain switch for both channels, a 3-position mode switch (bridged, stereo or parallel mono) and a 3-position 12dB/oct HPF switch (30Hz, 50Hz or off).
Packed with features, KLRs make a great choice when you need to value engineer a distributed sound system.
Power Rating 350W/Channel @ 8 Ohms Stereo
600W/Channel @ 4 Ohms Stereo
1000W/Channel @ 2 Ohms Stereo
2000W @ 4 Ohms Bridged Mono
Damping Factor > 380
Input Sensitivity Not Specified by Manufacturer
Input Impedance 12 kOhms, Balanced
Gain 31dB
Frequency Response 20Hz - 20kHz
Signal-to-Noise Ratio > 108dB
Total Harmonic Distortion (THD) < 0.05%
Connectors 2 x 3-Pin Eurblock Inputs
2 x XLR/TRS Combo Inputs
2 x Neutrik Speakon Outputs
Controls and Indicators 2 x Level Control Knobs
2 x 3-Position Gain Switches
1 x 3-Position Mode Switch
1 x 3-Position HPF Switch
1 x Limiter Switch
1 x On/Off Switch
LEDs for Level, Clip/Protect, and Power
Cooling Variable Speed Fan, Front-to-Rear Airflow, Removable Dust Filters
Power Consumption 0.99A, Idle
Power Permanently-Attached 3-Prong IEC Cable
Operating Temperature -10 to +40°C
Humidity: 0 to 90%
Protection Output Over-current, DC Output, Chassis Temperature, Mains Breaker
Dimensions (WxHxD) 482 x 88 x 407mm
Weight 10.7kg
