20Hz-18kHz HPF 10dB Pad 48V 250 Ohm Dual Diaphragm
The rich, warm sound takes you back to the classic F.E.T. studio microphones. But thereâs nothing remotely old-fashioned about the technology behind that vintage sound. The AT4047/SV studio condenserâs dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range. With a wide dynamic range, incredibly low self-noise and high SPL capability, this versatile microphone excels on vocals, strings, acoustic guitar, instrument ensembles, small vocal groups and voiceovers.

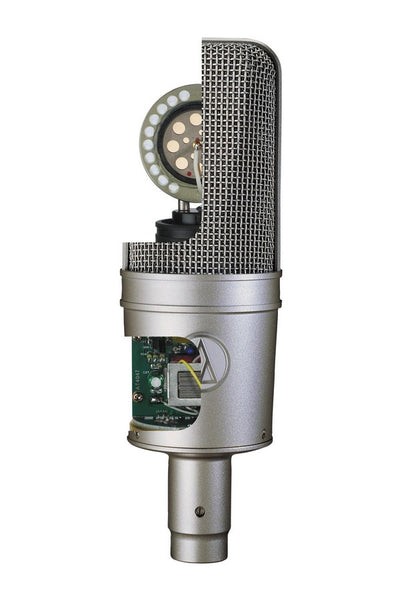

Check out audio samples and interior views of the AT4047/SV and other 40 Series side-address condensers
AT4047/SV. Itâs another in a venerable line of studio artistsâ dreams come true: the 40 Series, from Audio-Technica.
Designed for critical studio, live sound and broadcast applications
Transformer-coupled output and specially-tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs
Exceptionally low self-noise, wide dynamic range and high SPL capability
Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
Vintage silver-matte finish on microphone and shock mount
Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards
Switchable 80 Hz hi-pass filter and 10 dB pad
Custom shock mount provides superior isolation
ELEMENT Externally-polarized (DC bias) condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 20-18,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY -35 dB (17.7 mV) dB re 1V at 1 Pa
IMPEDANCE 250 ohms
MAXIMUM INPUT SOUND LEVEL 149 dB SPL, 1 kHz at 1% T.H.D.;
159 dB SPL, with 10 dB pad (nominal)
NOISE 9 dB SPL
DYNAMIC RANGE (typical) 140 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 85 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 48V DC, 3.0 mA typical
SWITCHES Flat, roll-off;
10 dB pad (nominal)
WEIGHT 14.5 oz (410 g)
DIMENSIONS 170.0 mm long,
53.4 mm maximum body diameter
OUTPUT CONNECTOR Integral 3-pin XLRM-type
ACCESSORIES FURNISHED AT8449/SV shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case
