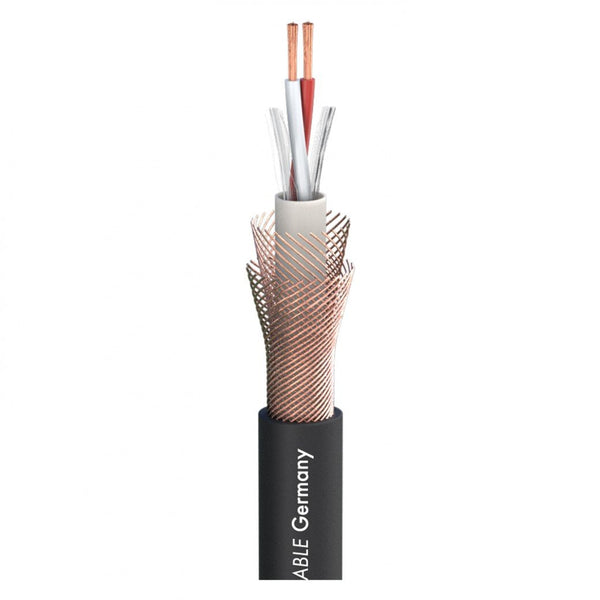

Sommer Cable SC-Galileo 238 Microphone Cable Black - Price Per Metre

Regular price $9.56

Tax included.

Dual screen...

shields better. Just like the SC-SYMBIOTIC, but a little bit more exclusive due to the dual reversely stranded helical copper mesh screen and the wire pairs embedded in PVC. This makes it even more flexible. Because of the thicker wire diameter (2 x 0,38 mm²) it is suitable for distances greater than 100 meters. This cable is technically sophisticated and may be the best microphone cable on the world market. Your clients in the recording studio will be surprised at the low-noise transmission!

Advantages:

  • Extreme long life and twist-proof due to the thick jacket and the wire pairs embedded in PVC
  • Absolutely neutral and loss-free audio transmission due to the use of fine copper
    litz wires
  • Excellent protection due to the dense reverse dual mesh screen
  • Very flexible due to the tightly stranded conductors and litz wires
  • Loss-free transmission over long distances due to a large wire gauge of 2 x 0,38 mm²

Application:

  • Highly professional studio and stage technology
  • Demanding OB van technology for radio and broadcasting
  • First-class hifi connection (red and white conductors on pin 1, separate shielding)



Name SC-Galileo 238
Properties OFC oxygen free copper
Properties Analog
Application area Installation
Application area Studio / Broadcast
Application area Mobile outdoor / indoor
Application area Stage / live
Application Microphone Cable
Colour black
Colour detailed black
Signal transmission symmetrical
Construction (2LI2Y0,38mm²)YDDY
Jacket material PVC
Jacket Ø [mm] 7,00
Number of Channels (audio) 1
Inner conductor (audio) 2
Inner conductor (audio) [mm²] 0,38
Inner conductor Ø (audio) [mm] 0,70
AWG (audio) 21
Shielding Double copper spiral, counter-rotating
Copper strands (audio) 48
Copper strand Ø (audio) [mm] 0,10
Conductor insulation material PE
Conductor insulation Ø [mm] 1,55
Weight per 1 m [g] 60
UV-resistant yes
Fire load per m [kWh] 0,22
Style variant round
Shielding factor [%] 100
Packing 100 m spool
Temperature min. [°C] -30
Temperature max. [°C] 70
Width [mm] 7
Height [mm] 7
Capac. cond./cond. per 1 m (audio) [pF] 50
Capacity wire/wire at 1 ft. (audio) [pF] 15,24
Capac. cond./shield. per 1 m (audio) [pF] 100
Capacity wire/electic screen at 1 ft. (audio) [pF] 30,48
Impedance [Ω] 38
Insulation resist. per 1 km [GΩ] 1
Insulation resist. per 1000 feet [GΩ] 0,3048
Insulation resist. per 1 km (audio) [GΩ] 1
Insulation resist. per 1000 feet (audio) [GΩ] 0,3048
Conductor resistance per 1 km [Ω] 52
Conductor resistance per 1000 ft. [Ω] 15,8496
Shield. resistance per 1 km [Ω] 20
Shield. resistance per 1000 ft. [Ω] 6,096
EAN 4049371001212
